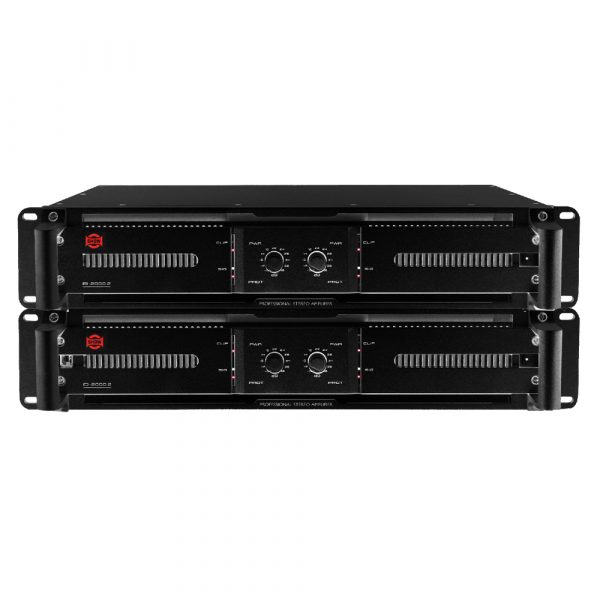

B2000.2

ODELB-2000.2 / D-2000.2
Power (Both channels Driven)2000 W x 2 /4Ω (RMS)
1200 W x 2 /8Ω (RMS)
Input Sensitivity (Limiter Off)0.9 – 1.1V (+0/-1dBv)
Input Impedance20kΩ balanced or 10kΩ unbalanced
Frequency Response (At 10dB below Rated Output Power)20Hz~20kHz (+0/-1dB)
Voltage Gain40dB (+/-0.5dB)
THD + N (Ref. 1kHz 1/8 Rated Power, A-Weighted)<0.1%
S/N Ratio (Ref. 1kHz, A-Weighted)> 100dB
Crosstalk (Below Rated Power)> 70dB
Damping Factor (1kHz, 8W)> 200
Power/Output CircuitySwitching Power Class-D
ProtectionsFull short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
ControlsFront: Front: AC switch (soft-start), Input level control
Rear: stereo / parallel selector
IndicatorsPOWER: 2 green LED – SIGNAL : 2 green LED – CLIP: 2 red LED – PROTECTION: 2 red LED
ConnectorsInputs:  NEUTRIK COMBO XLR/TRX  –  USB (D-2000.2)
Outputs: SPEAKON
Power SupplyAC: 110-120V or 220~240V 50/60Hz
Dimension (W x D x H)483 x 360 x 44 mm
Weight5.0 kg

B2000.2

SKU 93f7e4157309 Category
