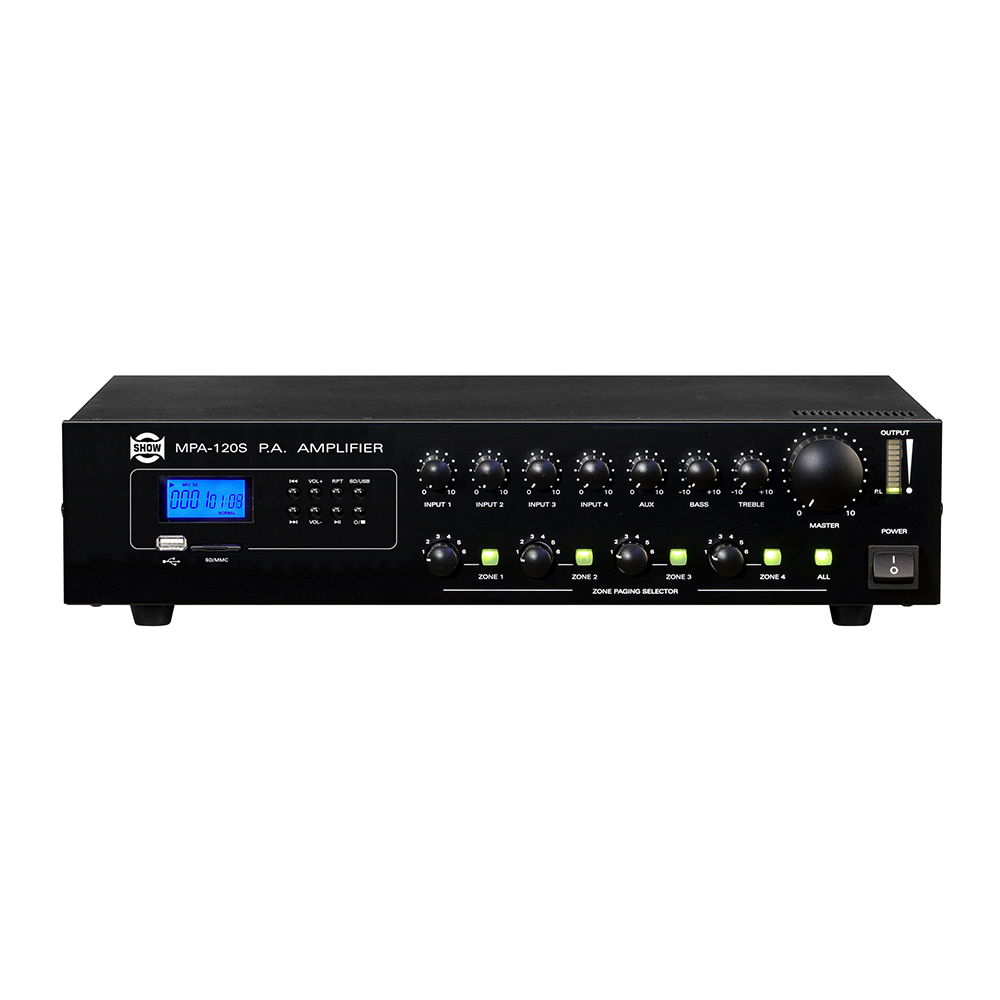

MPA-120S
   SKU   d6b57dd8cdd3   Category Amplifiers
The MPA-120S is a P.A. amplifier specifically designed for commercial applications. It is an ideal solution for bars, restaurants, retail outlets, offices, and other applications where paging and background music are required. The MPA-120S combines a 120 W amplifier with a five inputs mixer; it is a versatile and easy operating paging system. Mono inputs are available on combo balanced XLR / TRS 6.35 mm jacks. A switch on each input selects a line or microphone level with a 24 V phantom power option. A microphone plugged into input 1 can automatically mute other sound sources; the function is activated by the microphone signal. The priority can also be activated by the Tel. Input signal. The MPA-120S features a MP3 player for BGM or message paging. An insert out/in is available to connect signal processing devices, like delay units, EQs or anti-feedback systems. The main output section accepts 25, 70 and 100 V constant voltage line or 4 Ω impedance loads. Four additional switchable zone outputs are available with their own volume control. The MPA-120S can also operate with a 24 V DC power supply.
| MODEL | MPA-120S |
| Power Output (at 4Ω) | RMS 120W / MAX 170W |
| Frequency Response | 80Hz – 16kHz ± 3 dB |
| Power Supply | AC: 115~230V 50/60Hz switchable, DC 24V |
| Input / Sensitivity | MIC: -52dBv balanced |
| Phantom: -52dBv 24V balanced | |
| Line: -10dBv unbalanced | |
| AUX: -6dBv balanced | |
| AMP in: 0dBv unbalanced | |
| Tel: -10dBv balanced | |
| THD | <0.1% |
| S/N Ratio | MIC > 65dB / AUX > 80dB / Phone > 65dB / Line > 75dB |
| Output (Ω) | 4Ω |
| Output (V) | 25V, 70V, 100V |
| Zone out | 4 zone paging selection Z1 ~ Z4: 100V (333Ω) |
| Controls | 4 INPUT volume |
| 1 AUX volume | |
| 1 MASTER volume | |
| 2 Treble / Bass | |
| Tel input & Monitor | |
| 4 Zone out selector switch | |
| BGM Module | MP3-300 MP3 player |
| Dimension (W x D x H) | 420 x 260 x 88 mm (16.5’’ x 10.2’’ x 3.5’’) |
| Weight | 10.2 kg (22.7 lbs) |
